Hanwha TNS-7000M 3MP Mono BCR Camera

• Module Design, supports a variety of lens/LED module/front cover accessory
combinations
• Resolution: 3MP, Global shutter CMOS sensor
• Max. Framerate: 50fps
• Barcode recognition, WiseBCR based on AI engine
– 1D Code is available
(Code128 / CODE39 / CODE93 / Codabar / ITF(Interleaved 2 of 5) / UPC /EAN)
– 2D Code is available
(QRcode / DataMatrix / Maxicode / PDF417)

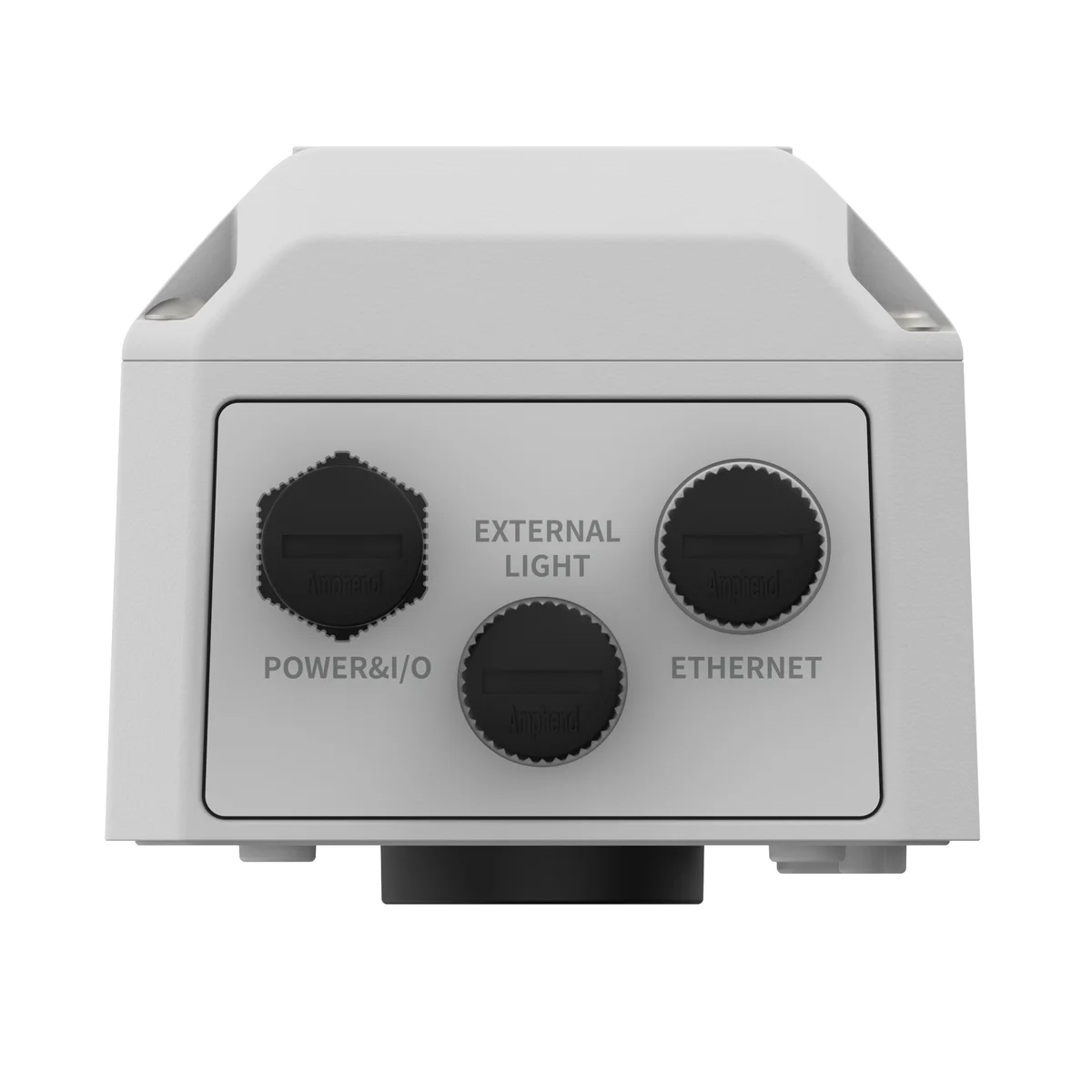

• Ethernet: RJ-45(10/100/1000BASE-T), M12
• IP66/IP67, IK10(excluding the front window), IEC 60068-2-6(vibration), IEC 60068-2-
27(shock)
• Optional accessories
– Lens:
SLM-5M06(6mm), SLM-5M08(8mm), SLM-5M12(12mm), SLM-5M16(16mm), SLM5M25(25mm)
– White LED module:
SPI-BWN0(16/25mm), SPI-BWM0(12mm), SPI-BWM1(8mm), SPI-BWW0(6mm)
– Front Cover:
SPF-BCB0(Clear), SPF-BPB0(Polarization), SPF-BDB0(Diffusion)
– Bracket: SBO-BPM0
– Ethernet cable: SPP-C08020E, SPP-C08050E, SPP-C08100E
※ Lenses, LED modules, front cover, Ethernet/Power cables and brackets are sold
separately as accessories

3MP Mono BCR camera Max 50fps @ 3MP. WiseBCR App support Barcode recognition. Currently 1D/2D Bar Code can be recognized(Code128 / Codabar / Interleaved 2 of 5) , M12 8pin Ethernet connect, IEC 60068-2-6(vibration), IEC 60068-2-27 (shock resistance). Operating temperature -40°C~+55°C, IP67, IK10, 24VDC. (accessories not included)
