IDIS
IDIS DR-8564D DirectIP 8500 Series H.265 4K Recorder / NDAA Compliant
- Video Inputs
- 64 IP Channels
- Max. Incoming Throughput
- 540Mbps
- Supported Camera
- DirectIP, AXIS, PANASONIC, ONVIF
- Video Outputs
- 2 HDMI
- Display Speed
- Up to 1080ips
- Digital Zoom
- x2 ~ x12
$6,750.00
- Typically ships within 3 business days
- Free shipping over $499 in the continental US ($30 below)
- Manufacturer warranty · Authorized dealer
- 30-day returns
Ask an engineer about compatibility · (971) 247-8833 · Mon–Fri 8 am – 6 pm PT
IDIS DR-8564D DirectIP 8500 Series H.265 4K Recorder / NDAA Compliant at a glance
- Total incoming throughput 540Mbps
- Up to 1920ips UHD real-time recording
- Supports H.265 / H.264 codec
- Supports UHD display
- Up to 1080ips live display
- Easy to install, set-up, and play with DirectIP cameras
- Supports RAID 1, 5, 10
- Supports Redundant Power
Specifications
Video
| Video Inputs | 64 IP Channels |
|---|---|
| Max. Incoming Throughput | 540Mbps |
| Supported Camera | DirectIP, AXIS, PANASONIC, ONVIF |
| Video Outputs | 2 HDMI |
| Display Resolution | HDMI : 3840x2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 1080ips |
| Digital Zoom | x2 ~ x12 |
| NVR Side Dewarping | Yes |
Network
| Client Connection | Gigabit Ethernet(Client) x 1 |
|---|---|
| Video In Connection | Gigabit Ethernet(Video In) x 3, SFP(Video In ) x 2 |
| Transmission Speed | 50Mbps / 100Mbps (BRP Mode) |
| Event Notification | Email (Attach Clip (.cbf) .MP4), Callback to Remote S/W, Push Notification (IDIS Mobile) |
| Two-way Audio | Yes |
Interface
| Audio In / Out | Local (NVR) : 1 RCA / 1RCA + 2HDMI IP Camera : 64 / 64 (Depending on IP Camera) |
|---|---|
| Alarm In / Out | Local(NVR) : 4 / 1 IP Camera : 64 / 64 (Depending on IP Camera) |
| Alarm Reset In | Yes |
| Serial Interface | RS232 (Terminal Block), RS485 (Terminal Block) |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| User Interface | Mouse, IR Remote Control, Network Remote Keyboard, Front Button(Panic) |
General
| Operating System | Embedded Linux |
|---|
Environmental
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
|---|---|
| Operating Humidity | 0% ~ 90% |
Mechanical
| Unit Dimensions (W x H x D) | 482.6mm x 88mm x 529.5mm (19" x 3.5" x 20.8") |
|---|---|
| Unit Weight | 12.2kg (27.0lb) (with 2 HDDs) |
Recording
| Max. Throughput | 400Mbps, 1920ips@UHD |
|---|---|
| Recording Resolution | Up to 12MP (Depending on IP Camera) |
| Video Compression | H.265, H.264 |
| Recording Mode | Time-lapse, Event, Pre-event, Panic |
Playback
| Performance | 64ch synchronous playback |
|---|---|
| Search Mode | Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite) |
| Digital Zoom | x2 ~ x12 |
Storage
| HDD | SATA x 8, eSATA x 4, RAID 1, 5, 10 Supported |
|---|---|
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. For the most recent information, please check here |
Electrical
| Power Consumption | 100-240V~, 50/60Hz, 8.0 - 4.0A, 145W x2 |
|---|---|
| Approval | FCC, UL, CE, CB, KC, PSE |
Shipping
Typically ships within 3 business days. Free shipping on orders over $499 within the continental US; $30 flat rate below.
Returns
30-day returns. Defective or damaged on arrival: we cover return shipping. Changed your mind: return shipping is paid by the buyer; items must be unused and in original packaging.
Warranty
Every product carries the manufacturer’s warranty; as an authorized dealer we handle warranty claims for you. Installed by Techno Place: 1-year workmanship warranty.
Support
Technical support Mon–Fri 8 am – 6 pm PT · (971) 247-8833
Similar models
All 64+ channel (98)
Lilin

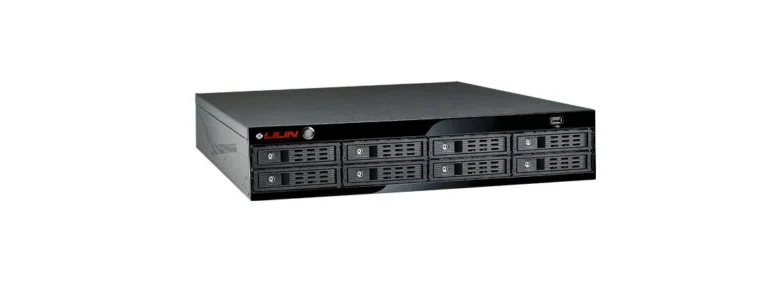

LILIN NAV08630-1X18TB NAV Recorder
$6,987.18
Add to cart
Hikvision
Hikvision DS-96128NI-M16/R 128-ch 2U 8K NVR Dual Power
$6,399.31
Add to cart
Hanwha

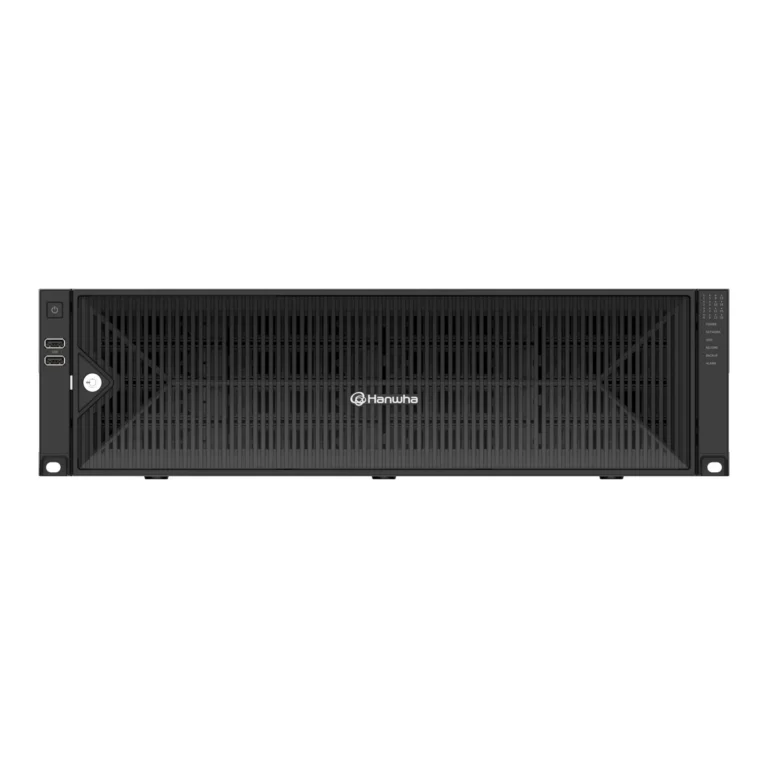

Hanwha XRN-6420DB4 64 CH NVR
